IDP-5580

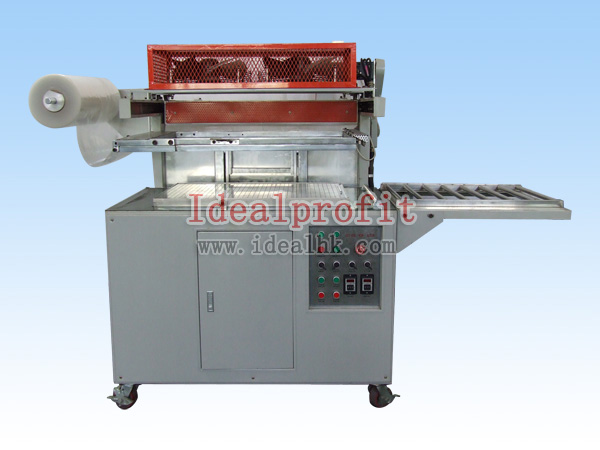

Fully automatic skin packaging machine IDP-5580





Specification:
Working area:L800xW550xH180mm
Film width:609-615mm(24")

Frame height: max 230mm
Heater:11.7KW (USA Ametek)
Vacuum pump:3HP
Power:380V 3PH 50/60HZ
Machine size:L225xW153xH164CM



Main features:

1. This machine offers two kinds feed ways: left-in-right-out and right-in-left-out

2. Original imported accessories from Taiwan, Japan, Korea, reliable functional.

3. Heater and cutting equipments have been installed protection cover to ensure absolute safety

4. Fixed heater, constant temperature heating system, save energy

5. Special tubular heaters alignment for average heat distribution

6. Small size, save space, can be worked with assembly line, enhancing efficiency

7. Other working area: 66x80cm, 80x80cm, 90x90cm

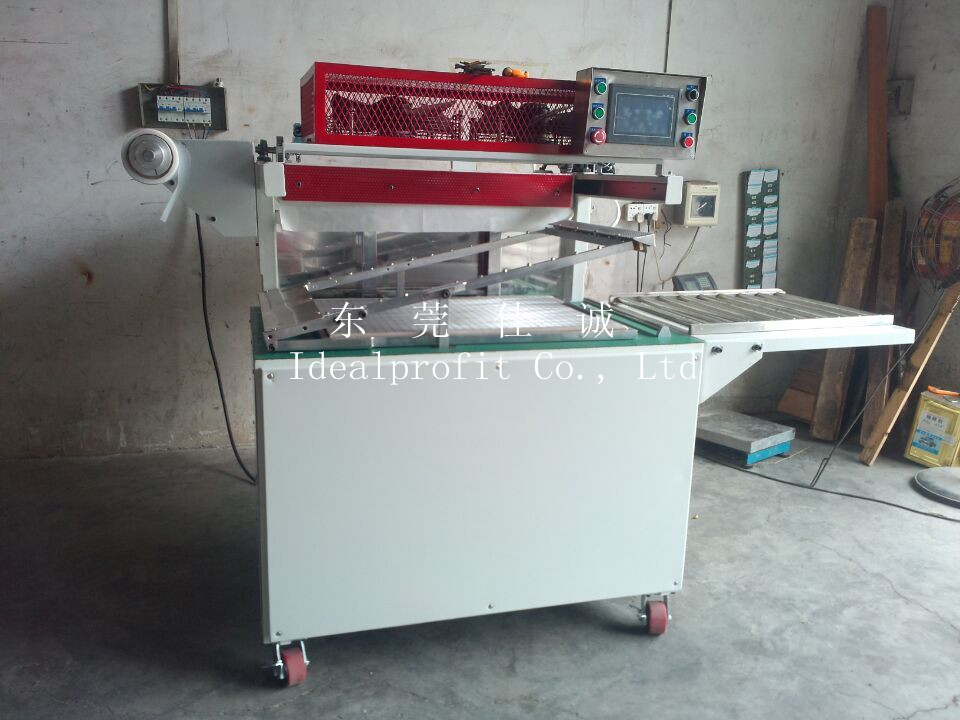

This type is already make PLC, see below:



Please contact with us if you need more information of our skin pack machine!
