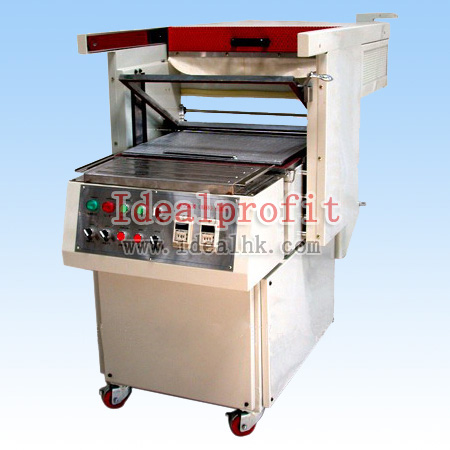

Semi-automatic skin packaging machine IDP-5540

Specification:
Working area: L400xW550xH140mm
Film width: 609-615mm (24")

Frame height: 190mm
Heater: 4.5KW
Vacuum pump: 2HP (USA  Ametek)
Power: 220V 1PH 50/60HZ
Machine size:L131xW77xH130CM

Main features:

1. Special far infrared tubular heating element is arranged with a special pattern to distribute heat evenly, which makes skin film and backboard stick tightly

2. Feed way: Front-in and front-out

3. Special safe frame is installed to ensure operator safe due to its upping automatic when meeting other matters.

4. USA Ametek vacuum pump to deliver strong vacuum, do not need air compress, high stability

5. Surface is deal with parched lacquer, good view and long use time

6. Electric control:

1) To Select manual or automatic discretionarily, convenient for adjustment and repair in manual and continuously producing in automatic

2 ) Respectively adjust and time of heating and pumping vacuum

7. High quality components of electric and vacuum systems imported from Taiwan, Japan and Korea, stability quality

8. Special dimension can be tailor-made.

Please contact with us if you need more information of our skin pack machine!
